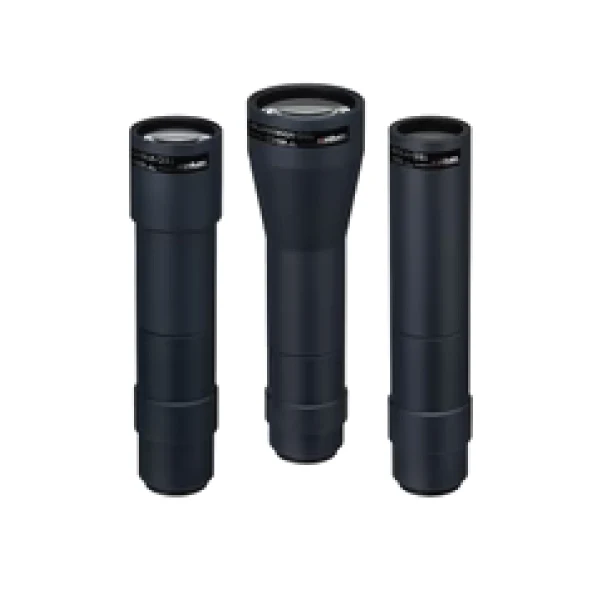

10MP Telecentric Lense(1.1")

Sr No	Model No	Magnification	WorkingDistance	DOF	Tele.Degree	Distortion	Aperture	MTF>0.3	Cam.Interface	2/3"CCD	1"CCD	1.1"CCD
1	KM-WTL52-08F20	0.8X	52	1.7	<0.1	<0.1	F11	>100	Cmount	11*8.3	16*12	17.5*12.8
2	KM-WTL75-07F20	0.7X	75	2	<0.1	<0.1	F11	>100	CMount	12.6*9.4	18.3*13.7	20*14.7
3	KM-WTL120-05F20	0.5X	120	3.2	<0.1	<0.1	F11	>100	CMount	17.6*13.2	25.6*19.2	28*20.6
4	KM-WTL130-042F20	0.42X	130	3.8	<0.1	<0.1	F11	>100	CMount	21*15.7	30.5*22.9	33.3*24.5
5	KM-WTL142-0.31F20	0.31X	142	9.5	<0.1	<0.1	F11	>100	Cmount	28.3*21.2	41.2*30.9	45.1*33.2
6	KM-WTL196-027F20	0.27X	196	6.5	<0.1	<0.1	F11	>100	Cmount	32.6*24.4	47.4*35.5	51.8*38.1
7	KM-WTL190-024F20	0.24X	190	11	<0.1	<0.1	F11	>100	Cmount	36.6*27.5	53.3*40	58.3*42.9
8	KM-WTL215-022F20	0.22X	215	13	<0.1	<0.1	F11	>150	Cmount	40*30	58.2*43.6	63.6*46.8
9	KM-WTL193-019F20	0.19X	193	26	<0.1	<0.1	F11	>150	Cmount	46.3*34.7	67.3*50.5	73.6*54.2
10	KM-WTL263-017F20	0.17X	263	15	<0.1	<0.1	F11	>150	Cmount	51.8*38.8	75.3*56.5	82.4*60.6
11	KM-WTL302-014F20	0.14X	302	22	<0.1	<0.1	F16	>150	Cmount	62.9*47.1	91.4*68.6	100*73.6
12	KM-WTL318-011F20	0.11X	318	31	<0.1	<0.1	F16	>150	Cmount	80*60	116.4*87.3	127.3*93.6
13	KM-WTL298-010F20	0.1X	298	68	<0.1	<0.1	F16	>150	Cmount	88*66	128*96	140*103
14	KM-WTL368-008F20	0.08X	368	130	<0.1	<0.1	F16	>150	Cmount	110*82.5	160*120	175*128.7
15	KM-WTL700-003F20	0.03X	700	585	<0.1	<0.1	F16	>150	Cmount	293*220	426.6*320	466*343.3
