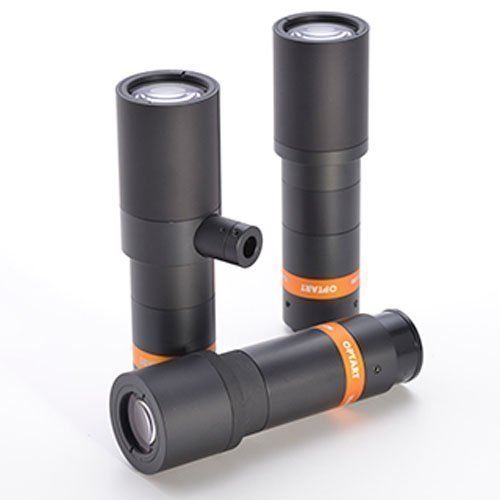

High Resolution Telecentric Lens(WD=110mm)

Sr No	Model No	Magnification	WorkingDistance	DOF	Resolution	Distortion	1/3" CCD	1/2"CCD	2/3"CCD
1	KM-110-03T50	0.3X	110	6	0.01	16*12	21.3*16	29.3*22	Coaxial
2	KM-110-05T40	0.5X	110	4	0.01	9.6*7.2	12.8*9.6	17.6*13.2	Coaxial
3	KM-110-08T34	0.8X	110	2.1	0.008	6*4.5	8*6	11*8.3	Coaxial
4	KM-110-1T28X	1.0X	110	1.6	0.006	4.8*3.6	6.4*4.8	8.8*6.6	Coaxial
5	KM-110-15T28X	1.5X	110	1.1	0.005	3.2*2.4	4.2*3.2	5.9*4.4	Coaxial
6	KM-110-2T28X	2.0X	110	0.9	0.005	2.4*1.8	3.2*2.4	4.4*3.3	Coaxial
7	KM-110-3T28X	3.0X	110	0.7	0.008	1.6*1.2	2.1*1.6	2.9*2.2	Coaxial
8	KM-110-4T28X	4.0X	110	0.3	0.008	1.2*0.9	1.6*1.2	2.2*1.7	Coaxial
9	KM-110-6T28X	6.0X	110	0.1	0.008	0.8*0.6	1.1*0.8	1.5*1.1	Coaxial
10	KM-110-03F50	0.3X	110	6	0.01	16*12	21.3*16	29.3*22	Non-coaxial
11	KM-110-05F40	0.5X	110	4	0.01	9.6*7.2	12.8*9.6	17.6*13.2	Non-coaxial
12	KM-110-08F34	0.8X	110	2.1	0.008	6*4.5	8*6	11*8.3	Non-coaxial
13	KM-110-1F28X	1.0X	110	1.6	0.006	4.8*3.6	6.4*4.8	8.8*6.6	Non-coaxial
14	KM-110-15F28X	1.5X	110	1.1	0.005	3.2*2.4	4.2*3.2	5.9*4.4	Non-coaxial
15	KM-110-2F28X	2.0X	110	0.9	0.005	2.4*1.8	3.2*2.4	4.4*3.3	Non-coaxial
16	KM-110-3F28X	3.0X	110	0.7	0.008	1.6*1.2	2.1*1.6	2.9*2.2	Non-coaxial
17	KM-110-4F28X	4.0X	110	0.3	0.008	1.2*0.9	1.6*1.2	2.2*1.7	Non-coaxial
18	KM-110-6F28X	6.0X	110	0.1	0.008	0.8*0.6	1.1*0.8	1.5*1.1	Non-coaxial
